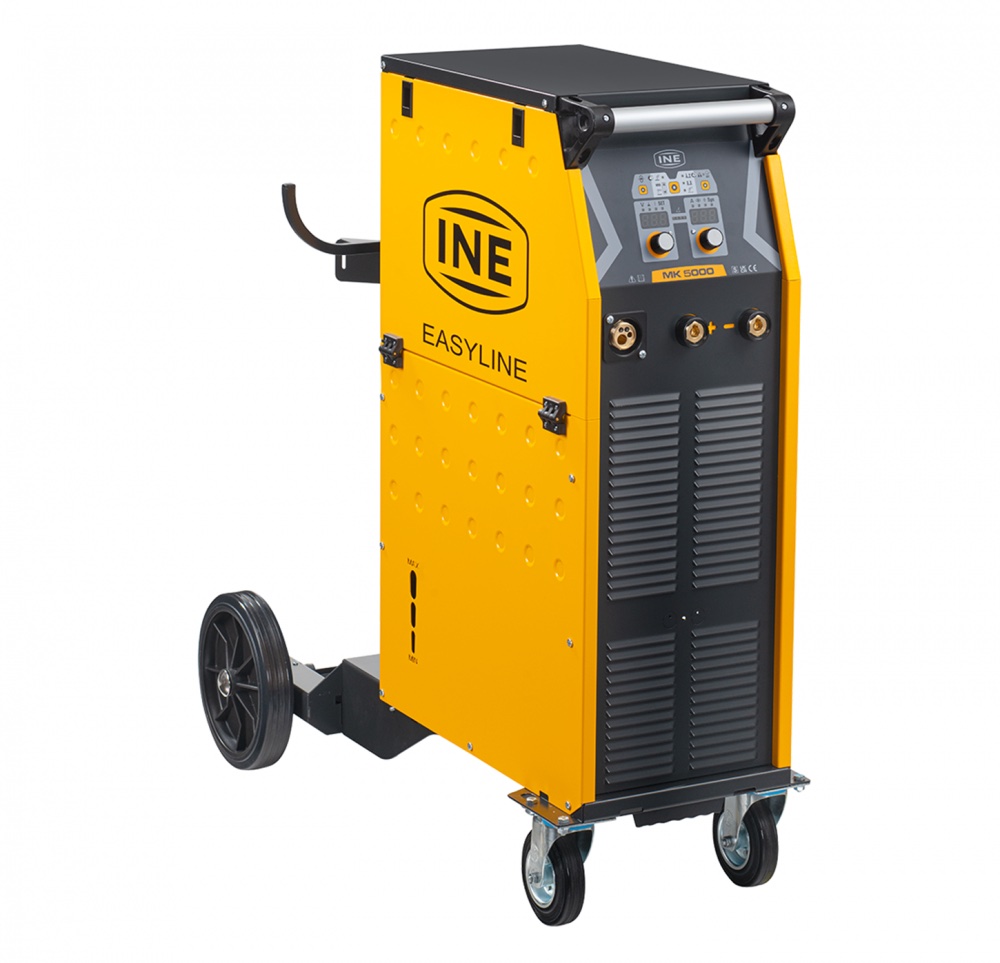

Exit full screenEASYLINE MK 5000
The EASYLINE family was created as a technical evolution of the MK and MM transformator welding machines, offering a simple, robust and future-oriented alternative for the industrial sector. The philosophy behind the creation of the Easyline family is practicality. Through careful design and optimization of each component, the machines in the Easyline series are solid and durable. They are intended for intensive professional use, but even less experienced operators can achieve the best results thanks to straightforward and intuitive controls. The range covers all needs, offering 6 different models from 300 to 500 amperes, compact and with a separate wire feeder.
Welding process- MIG/MAG
- MIG/MAG - Synergic
- SCRATCH TIG
- MMA
- Inverter
- Three-phase
The new, fully digitally controlled inverter technology allows high duty cycles, increasing welding efficiency and quality. All Easyline models have been built to withstand even the most intensive and wear and tear, whether you work outdoors or in the workshop.
TK4
The wire feeder specifically designed for the Easyline line. Sturdy and light, it allows excellent transportability in all conditions of use. Optional wheel kit.
| Main voltage | 3x400V~ (±15%) 50-60Hz |
| Delayed line fuse | 32A - 400V~ |
| Current regulation | linear |
| Max. absorbed power | 22.0 kW |
| Current regulation range | 6÷500A |
| No-load voltage | 50% 500A I 60% 460A I 100% 390A |
| Current range | 68V |
| Ø MMA electrodes | 1.6÷6.0 |
| Ø MIG/MAG WIRES | 0.6 - 0.8 - 1.0 - 1.2 |
| Protection class | IP23S |
| Weight | 70 kg |
| Dimension (WxDxH) | 550x940x1032mm |
