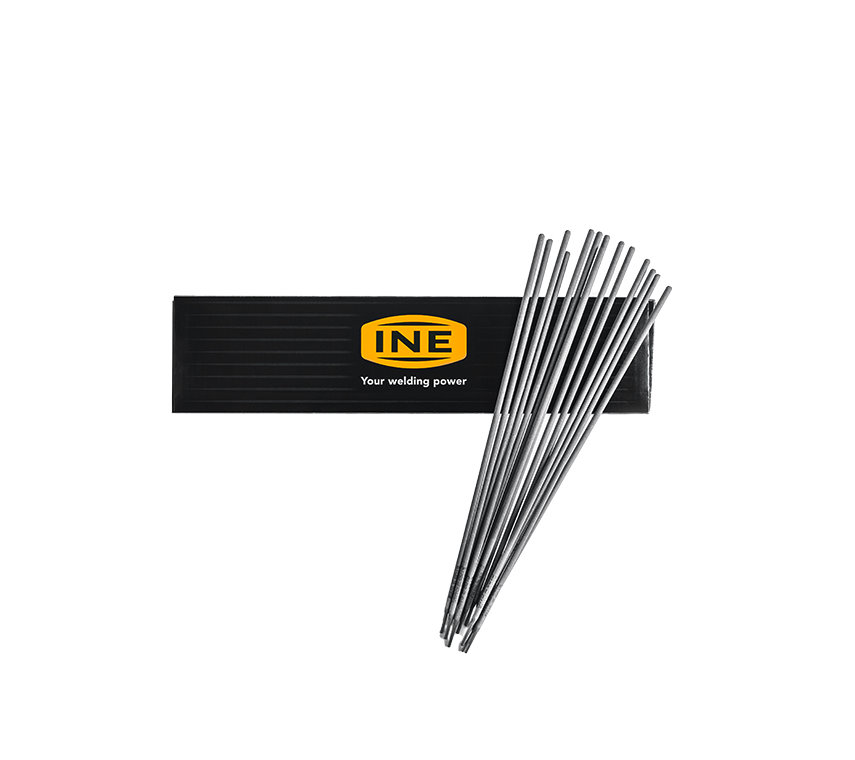

INE RD 600

Electrode for Harfacing

Basic-coated electrode EN 14700: E Fe4 mostly used for the hard-facing of rolling mill rollers, tracks, slippage rollers, screw feeders, crushing jaws, millstones, requiring high abrasion resistance, together with impact and heat resistance,

Classifications

EN 14700: E Fe4

Description + -

Basic-coated electrode mostly used for the hard-facing of rolling mill rollers, tracks, slippage rollers, screw feeders, crushing jaws, millstones, requiring high abrasion resistance, together with impact and heat resistance, and for the hard-facing of wear parts such as buckets and excavator shovel teeth, and surfaces exposed to abrasion. Excellent wetting of the weld metal, very good weld quality, good-looking weld bead and rather limited spattering

Typical chemical analysis (Wire wt%) + -

C	0.40
Mn	1.90
Cr	2.80

Typical mechanical characteristics + -

Hardness

HRc 56

Welding parameters + -

Diameter (mm)	Length	Ampere
2.5	300	50-80
3.2	350	70-100
3.2	450	70-100
4.0	450	100-140
5.0	450	120-170

Welding positions + -

Plane and frontal plane
