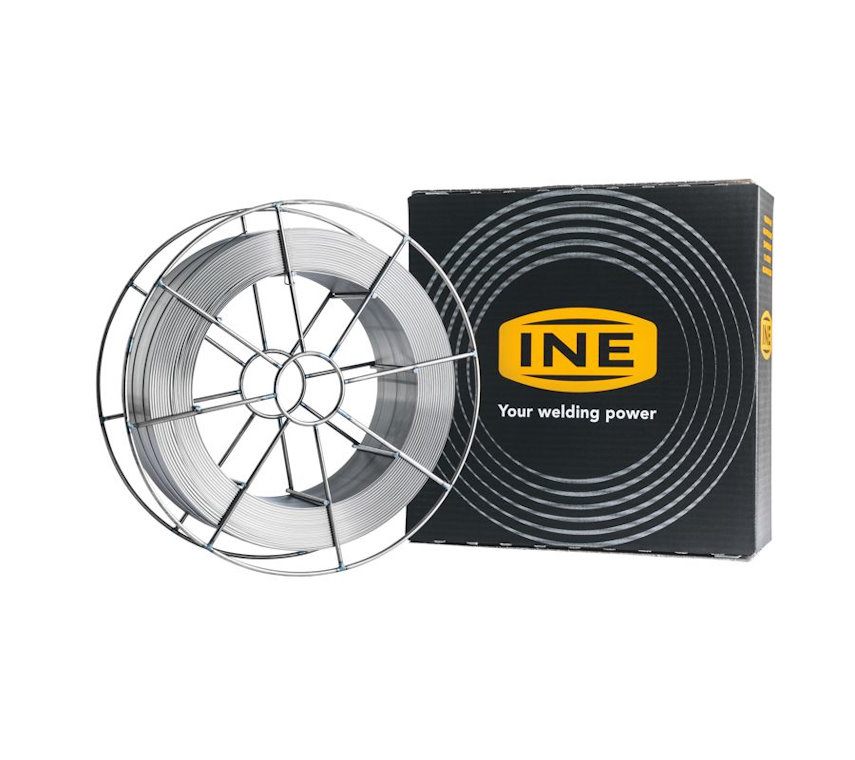

Exit full screenINEFIL 19.12 NR
Mig Mag wires for welding of mild and low alloy steels
G 4Si1/ER70S-6. Copper-free solid wire for GMAW of C.Mn. steels for general construction with tensile strength up to 510 MPa. Produced using high purities selected raw material. Arch stable without spatters Shielded gas of Ar./ CO2 or CO2. International approved
Classifications- AWS A 5.18: ER70S-6
- EN ISO 14341-A: G 46 4 M21 4Si1
- EN ISO 14341-A: G 42 2 C1 4Si1
- Marchio CE
- DNV-GL
- DB
- RINA
- ABS
- TÜV
- Copper free
SG3 copper-free solid wire for carbon and microalloyed steels S355/S420/S460. Ideally suited for fully-mechanized and robotic applications with high parameters. Suitable for single or multi-pass welding. Applications include tanks, boilers, steel structural works, earthworks and construction works. Manufactured from first-choice wire rod with very low content of impurities, it is produced with an innovative system that considerably improves wire feeding in the torch liners, thus reducing the need for torch spares. No vibrations at all, very limited spattering and smooth and good-looking weld beads. Suitable for semiautomatic, automatic and robot welding, especially in those applications in which welding parameters are high. To be used under Ar+CO2 or CO2 shielding gases.
| C | 0.08 |
| Si | 0.90 |
| Mn | 1.70 |
| C1 | M21 | |
| Yield strength | 450 MPa | 510 MPa |
| Tensile strength | 550 MPa | 580 MPa |
| Elongation | 27 % | 26 % |
| Impact test Kv (-20°C) | 70 J | 100 J |
| Impact test Kv (-30°C) | 60 J | 80 J |
| Impact test Kv (-40°C) | 70 J |
| Diameter (mm) | Volts | Ampere |
| 0.8 | 16-28 | 60-200 |
| 1.0 | 17-32 | 80-260 |
| 1.2 | 18-34 | 100-360 |
| 1.6 | 19-38 | 130-450 |
