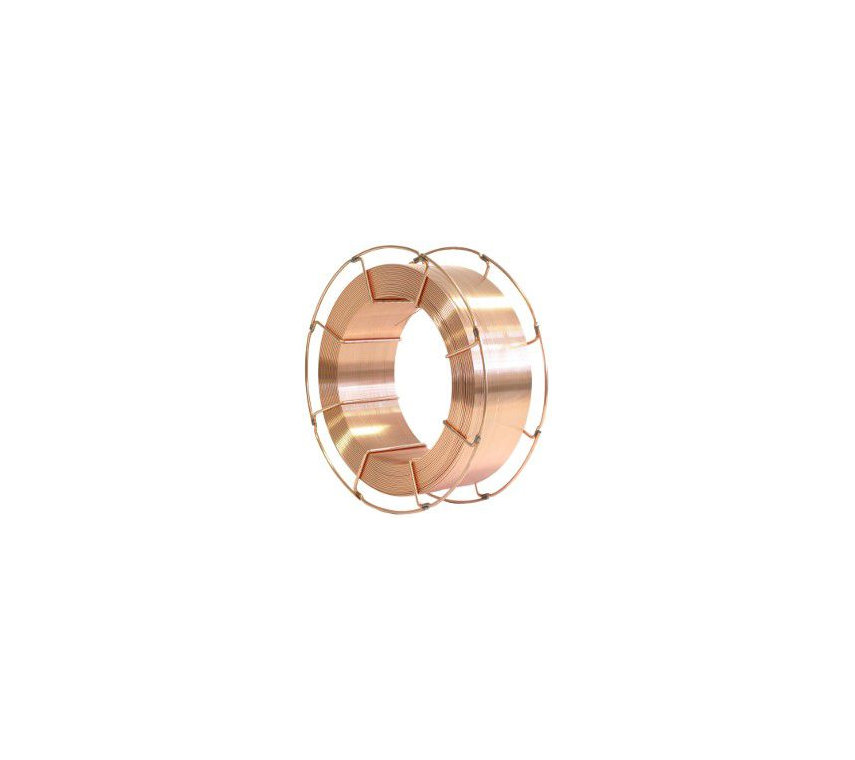

INEFIL B8

Solid Wire for welding 9.0% Cr.1.0% Mo steels

Solid wire AWS A 5.28: ER90S-B8. For steels 9% Cr and 1.0% Mo, for creep resistant steel, ASTM A385 Gr 9A or DIN X12CrMo9-1. Corrosion resistant and cold cracking. Good mechanical characteristics. X and J checked

Classifications

AWS A 5.28: ER80S-B8
EN ISO 21952-A: G CrMo9

Finishes

Copper coated

Description + -

Solid wire with 9% Cr and 1,0 % Mo, used for welding in all positions creep resisting steel. Used in the chemical industry, in petrochemical plants and in processes synthesis of ammonia. Also used in heat exchangers, boilers, pipes and receptacles a pressure with operating temperatures up to 600 ° C. Its corrosion resistance is higher than 5 Cr 0,5 Mo steels requirements. The deposit and resistant to cold cracking can also be used for the repair of molds of similar composition used in the transformation of plastics. * (X and J Factor checked "on request")

Typical chemical analysis (Wire wt%) + -

C	0.07
Si	0.40
Mn	0.50
Cr	9.00
Mo	1.00

Typical mechanical characteristics + -

	M22
Yield strength	500 (T) MPa
Tensile strength	630 (T) MPa
Elongation	23 (T) %
Impact test Kv (R.T.)	60 J (T)

Welding parameters + -

Diameter (mm)	Volts	Ampere
0.8	16-28	60-200
1.0	17-32	80-260
1.2	18-34	100-360
1.6	19-38	130-450

Welding positions + -

ALL
