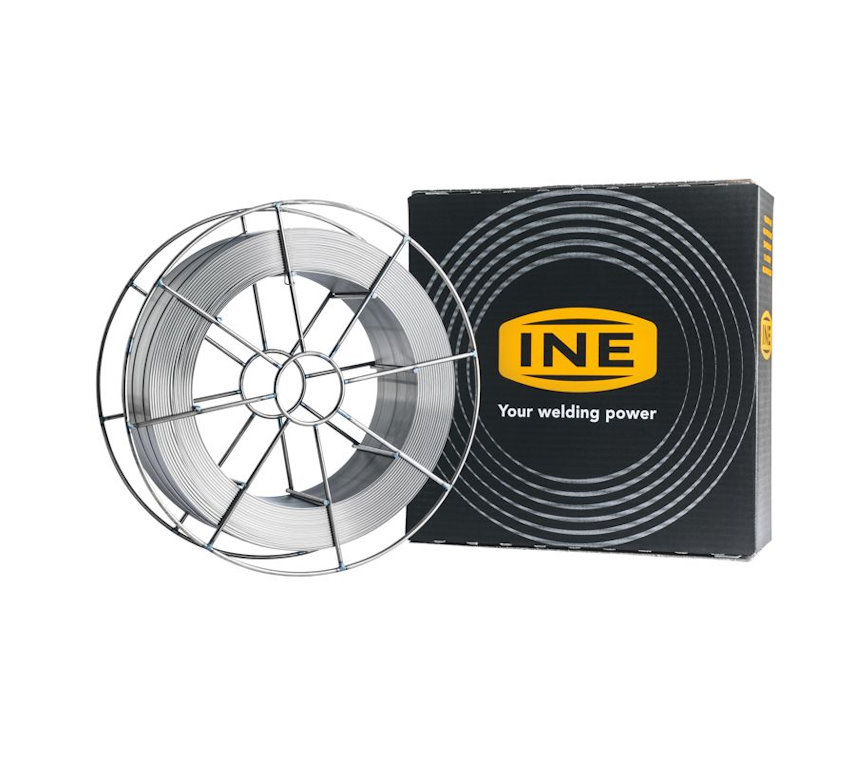

INEFIL INOX 308 LSI

Solid wire for welding of stainless AISI 304 / 308

AWS A 5.9: ER308L solid wire with low carbon content for welding stainless steel at 18/8 Ni / Cr. The high silicon content allows for good arc stability. To be used with Ar 98% + O2 2% mixture.

Classifications
  • AWS A 5.9: ER308LSi
  • EN ISO 14343-A: G 19 9 L Si
Approvals
  • Marchio CE
  • DB
  • TÜV
Description + -

Solid wire with low carbon concentration designed for welding stainless steel with 18% Cr and 8% Ni content with service temperature in the range of -100°C and 400°C. Thanks to the higher silicon content its arc stability gets improved, it gives good-looking weld bead and very limited spattering. It finds application in general and architectural fabrication, pharmaceutical equipment, food industry and nuclear engineering. High corrosion resistance in an oxidizing environment. To be used under the shield of Ar 98% + O2 2%.

Typical chemical analysis (Wire wt%) + -
C 0.03
Si 0.85
Mn 1.80
Ni 10.00
Cr 20.00
Mo 0.10
Typical mechanical characteristics + -
M13
Yield strength 440 MPa
Tensile strength 580 MPa
Elongation 42 %
Impact test Kv (R.T.) > 47 J
Welding parameters + -
Diameter (mm) Volts Ampere
0.8 16-28 60-200
1.0 17-32 80-260
1.2 18-34 100-360
Welding positions + -

ALL
