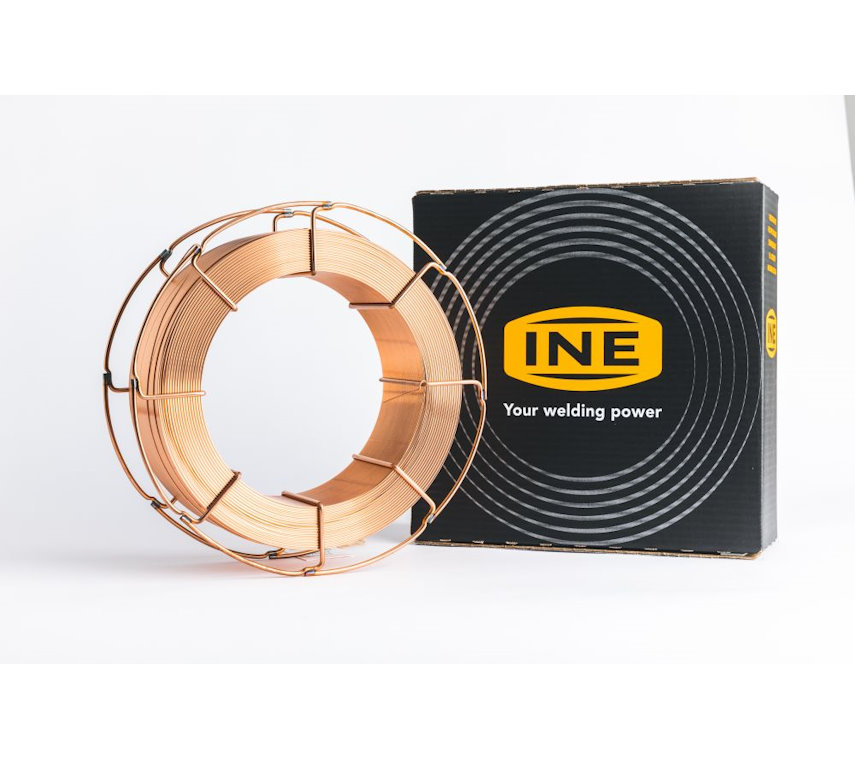

INEFIL

Mig Mag wire for welding of mild and low alloy steels

Solid wire G3Si1/ER70S-6 for GMAW of C.Mn. steels as used in general construction with tensile strength up to 510 MPa. Produced using high purities selected raw material. Arch stable without spatters Shielded gas of Ar./ CO2 or CO2.

Classifications
  • AWS A 5.18: ER70S-6
  • EN ISO 14341-A: G 46 4 M21 3Si1
  • EN ISO 14341-A: G 42 2 C1 3Si1
  • EN ISO 14341-A: G 46 3 M14 3Si1
Approvals
  • Marchio CE
  • CWB
  • LR
  • RINA
  • DNV-GL
  • ABS
  • DB
  • TÜV
Finishes
  • Copper free
  • Bronze
  • Copper coated
Description + -

Copper-coated solid wire designed for welding carbon and carbon-manganese steels with tensile strength up to 510 MPa. Suitable for single pass or multi-pass welding. Applications include tanks, boilers, steel structural works, earthworks and construction works. To be used under the shield of Ar+CO2, Ar+O2 or CO2.

Typical chemical analysis (Wire wt%) + -
C 0.07
Si 0.80
Mn 1.40
Typical mechanical characteristics + -
C1 M21 M14
Yield strength 440 MPa 470 MPa 480 MPa
Tensile strength 530 MPa 560 MPa 580 MPa
Elongation 26 % 26 % 28 %
Impact test Kv (-20°C) 70 J 90 J 80 J
Impact test Kv (-30°C) 50 J 70 J 60 J
Impact test Kv (-40°C) 60 J
Welding parameters + -
Diameter (mm) Volts Ampere
0.8 16-28 60-200
1.0 17-32 80-260
1.2 18-34 100-360
1.6 19-38 130-450
Packaging + -

D100 - 1kg
D200 - 5kg
D300 - 15kg

Welding positions + -

ALL
