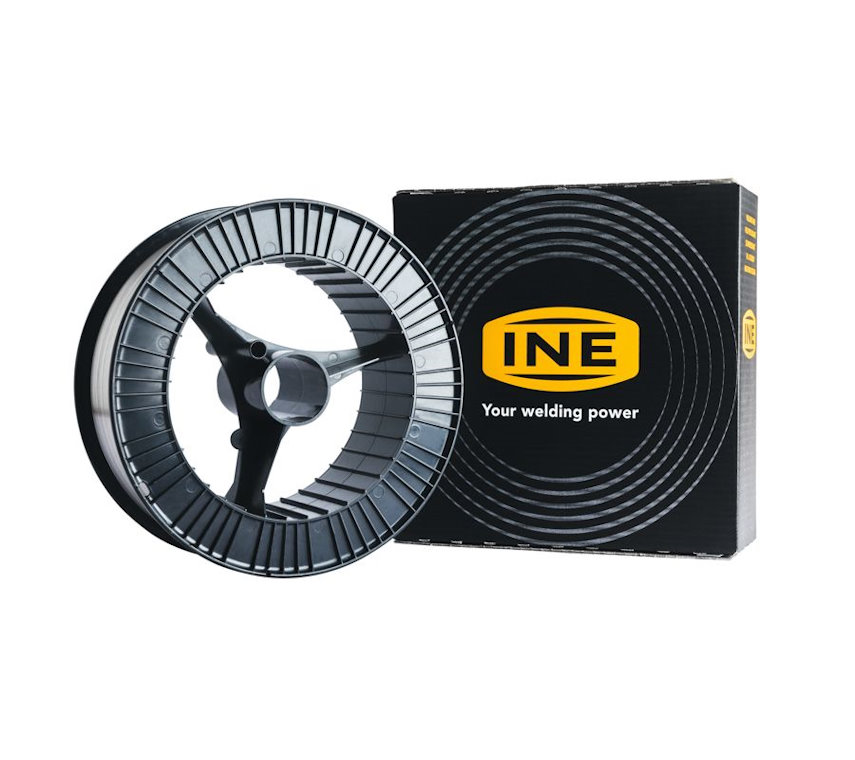

INETUB M71TG

Metal-cored flux core wires for welding carbon and C-Mn steels

Metal-cored wire designed for welding carbon weather resisting steels. 20% more of deposition rate in comparison with solid wires, at the same amperage. To be used under the shield of Ar+CO2. AWS A 5.36: E71T15-M21A4-CS1 H4

Classifications
  • AWS A 5.18: E70C-6M H4
  • AWS A 5.36: E71T15-M21A4-CS1 H4
  • EN ISO 17632-A: T 46 4 M M21 2 H5
Approvals
  • Marchio CE
  • LR
  • RINA
  • DNV-GL
  • ABS
  • DB
  • TÜV
Description + -

Metal-cored high efficiency wire for welding of carbon and C-Mn steels with tensile strength up to 510 MPa. Retains good mechanical properties at low temperature (down to -40°C). Efficiency is 20% higher than solid wire for the same welding parameters. Spatter free, good wetting even on poorly prepared materials and excellent bead appearance even at high welding speed. Minimum spatters makes INE M71TG ideal for multipass semi-automatic and automatic welding without the need for inter-run cleaning. To be used under gas shielding of Ar+CO2 mix.

Typical chemical analysis (Wire wt%) + -
C 0.05
Si 0.60
Mn 1.50
Typical mechanical characteristics + -
Shielding gas M21
Yield strength 500 MPa
Tensile strength 575 MPa
Elongation 25 %
Impact test Kv (-20°C) 110 J
Impact test Kv (-40°C) 80 J
Welding parameters + -
Diameter (mm) Volts Ampere
1.0 15-28 90-240
1.2 16-34 110-350
1.4 17-35 130-360
1.6 19-37 140-450
Welding positions + -

All except vertical down
